A compact angle stop is an L-shaped valve installed where the supply line reaches a fixture. You will find these valves under sinks, behind toilets, and at many appliance connections. A functioning Plumbing Angle Stop lets you isolate one fixture without shutting off the main supply. That means fixture swaps can be completed with less disruption.
Plumbing Angle Stops
In many homes, angle stops measure about 3–6 inches and redirect water at a 90-degree angle toward the fixture. Today’s installations often use quarter-turn, ball-style Angle Stop Valve models. They are easier to operate and commonly provide longer service life. If an angle stop corrodes, leaks, or becomes stiff, replacing it helps prevent water damage and simplifies future maintenance.
Main Takeaways
- Plumbing Angle Stops let you shut off water to one fixture without touching the house main.
- Angle Stops Plumbing are commonly installed under sinks and behind toilets for easy access.
- An Angle Stop Valve typically measures 3–6 inches and turns water 90 degrees toward the fixture.
- Quarter-turn models are commonly preferred because they operate easily.
- Any valve that corrodes should be replaced before it causes larger water problems.

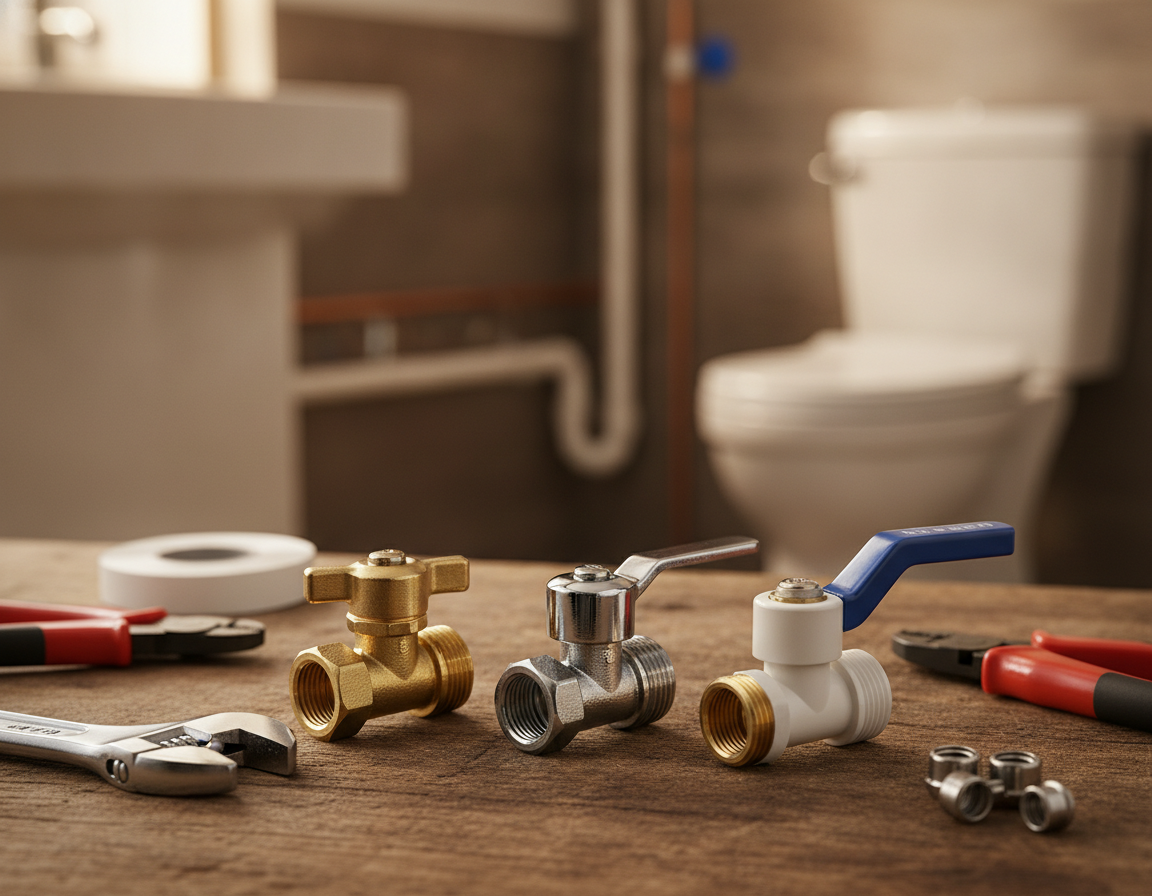

What Is An Angle Stop And Why It Matters
The angle stop is a compact shutoff valve installed where a water line meets a fixture. It controls water to a single fixture so repairs, upgrades, or replacements can happen without closing the whole-house main. Homeowners, plumbers, and building inspectors rely on it to keep repairs quick and contained.
Simple Definition And Explanation
An angle stop is a right-angle valve installed on the supply line feeding a fixture. It comes in different designs, including Angle Stop Valves with multi-turn stems or quarter-turn ball internals. A Plumbing Angle Stop is designed to fit neatly in tight spots such as under-sink cabinets and behind toilets.
Where Angle Stops Are Installed In A Typical Home
Plumbing Angle Stops are commonly found under kitchen and bathroom sinks. They sit at the back of cabinets where the supply line enters. Toilet stops mount on the wall behind the tank. Angle stops may also appear at appliance connections, including dishwashers, ice makers, washing machines, and some water-heater cold-supply lines.
Practical Benefits For Homeowners
One main benefit of an Angle Valve For Sink is isolation. With a working Plumbing Angle Stop, you can shut off a single sink, toilet, or appliance line while fixing a leak or replacing a fixture. This keeps small leaks from turning into major water damage and limits disruption during repairs.
Another advantage is convenience. Angle Stops Plumbing are easy to reach, helping reduce repair time and inconvenience. Turning the valve periodically helps keep it from sticking. Upgrading old multi-turn stops to modern quarter-turn Angle Stop Valve models speeds emergency responses and lowers stress.
How An Angle Stop Differs From An Angle Seat Valve
Residential angle stops are made for fixture-level potable water service. They are suited to sinks, toilets, and everyday household appliances. The industrial Angle Seat Valve is different. It handles high-pressure, high-temperature, or corrosive media found in steam, chemical, and HVAC systems. Angle seat valves use pistons and durable metal seats for tough service, while an Angle Stop is a simpler fixture-level shutoff for residential plumbing.
Angle Stop Types And How To Choose One
Selecting the correct angle stop involves comparing materials, operating style, connection type, and extra features. This guide compares common options to help homeowners and plumbers choose a durable, code-compliant fixture shutoff.
Materials
Brass is widely used as the standard material for Angle Stops. It resists corrosion and can last 10–20 years, making it ideal for Quarter-Turn Angle Stops. Stainless steel bodies are best for humid basements, coastal areas, and outdoor hose bibs to prevent rust. Plastic-bodied stops are cheaper, but they are typically less durable and can degrade in hot-water service. For potable water lines in the United States, select a Lead-Free Angle Stop that meets applicable federal and state requirements.
Operation Styles
Quarter-turn valves typically use a ball or disc mechanism and operate with one 90-degree turn. They offer low turning force and better resistance to mineral buildup, which makes them useful for frequent operation and emergencies. Multi-turn valves use a rising stem and require several rotations for full shutoff. They provide finer flow control but are more likely to leak or stick in older homes.
Connection Types
Compression Angle Stop fittings use a nut and ferrule, making them common for copper and CPVC stub-outs. They are popular in remodels because they can be installed without soldering or open flame. Sweat Angle Stop joints are soldered for a slim, permanent seal and work well in tight spaces where a torch is acceptable. FIP-threaded valves attach to male adapters and usually require PTFE tape or pipe-thread sealant. Push-Fit Angle Stop products, including SharkBite-compatible models, slip onto copper, CPVC, or PEX for tool-free installs. They are useful for DIY work or cramped areas, while Compression Angle Stop options remain common where future rework is expected.
Special Features
Some Angle Stop Valve models include a Water Hammer Arrestor Angle Stop. These use a piston or air chamber to absorb shock from quick-closing fixtures and reduce noisy banging. For coastal or humid environments, choose a Coastal Angle Stop with corrosion-resistant finishes, stainless internals, and anti-seize stems. A Lead-Free Angle Stop marking on the body helps confirm the valve is intended for potable-water use. Select a model that matches your pipe type and service expectations to avoid premature failure.
Plumbing Angle Stops Guide
Plumbing angle stops control water flow to fixtures with a right-angle design. Choosing the right size and style affects performance, ease of service, and compliance. The sections below explain valve markings, typical home locations, lead-free requirements, and modern installation trends.
Common Sizes And Reading Valve Markings
In homes, inlet fittings are usually 1/2 inch nominal, while fixture outlets are often 3/8 inch compression. Valve labels may show a format like 1/2 x 3/8 or 1/2” MIP x 3/8” OD. Those markings show which side connects to the supply pipe and which side connects to the fixture hose. Some valves are marked 3/8 COMP to indicate a compression outlet. Make sure the inlet matches your supply pipe, whether it is 1/2 FIP, 1/2 MIP, or 1/2 sweat.
Typical Placement In The Home
Angle stops are commonly found under kitchen and bathroom sinks and behind toilets. Dedicated stops may also serve dishwashers, ice makers, washing machines, water heaters, and other appliances. Under-sink valves are commonly located at the rear of cabinets, while toilet stops are generally visible near the wall behind the tank.
Potable Water Code And Safety Notes
In the United States, valves used on drinking-water lines must comply with lead-free requirements for wetted surfaces. Look for a Lead-Free Angle Stop with compliant markings and documentation. Contractors should follow local plumbing codes and provide the appropriate certifications, testing information, and warranty support.
Recommended Angle Stop Standards
Modern Angle Stops often use quarter-turn ball designs. The Quarter-Turn Angle Stop gives quick emergency shutoff and long life with brass construction. Many plumbers standardize on brass 1/2 x 3/8 angle stops for sinks and toilets because they simplify stocking, replacement, and maintenance. New installations increasingly include models with arrestors, lead-free markings, and other potable-water protection features.
Quick Checklist For Choosing Angle Stops
- Check Valve Markings before buying so the inlet type and outlet size match your system.
- Make sure the Angle Valve For Sink or toilet stop matches the supply hose, fixture threads, and tank connection.
- Use a Lead-Free Angle Stop whenever the valve is installed on a potable-water line.
- Standardize on Quarter-Turn Angle Stop 1/2 x 3/8 units for easier repair and reliability.
Installing And Replacing Angle Stops: Tools, Steps, And Best Practices
When tackling a plumbing angle stop, it is important to know when to shut the main water supply. Only shut the main if the existing stop will not close fully, is damaged, or is frozen. For most replacements, you can isolate the line using the valve under the sink. Always open a downstream faucet to relieve pressure and keep towels and a bucket ready.
Before starting, gather all needed tools and supplies. You will need an adjustable wrench, backup wrench, tube cutter, and deburring tool. Emery cloth, PTFE tape, a marker, and a flashlight are also helpful for clean preparation and inspection. For push-fit installs, bring the manufacturer’s push-fit angle stop, a PEX stiffener, and spare ferrules and nuts for compression work. Penetrating oil and a heat shield help with stubborn fittings and sweat connections.
Checklist:
- Adjustable wrench and backup wrench
- Clean-cutting and deburring tools
- Thread tape and insertion-depth marker
- Push-fit stop with PEX stiffener
- Replacement ferrules, compression nuts, penetrating oil, and towels
Follow specific steps for each connection type. For compression, slide the nut and ferrule onto the pipe, then seat the valve against the pipe shoulder. Start the nut by hand, then tighten another 1/4–1/2 turn with a wrench. When tightening the outlet nut, use a backup wrench to prevent twisting the stub-out.
For push-fit installation, make a square pipe cut and deburr the end thoroughly. Mark the insertion depth and push the valve straight on to the depth mark. After installation, give the fitting a light tug to confirm it has locked in place. Push-fit angle stop fittings work on copper, CPVC, and PEX; use a stiffener for PEX where required.
Sweat angle stop joints require careful handling. Remove or protect seals, clean and flux the pipe and valve cup, heat evenly, and apply solder properly. Once the joint cools, wipe away flux residue and inspect the solder bead. Use a heat shield or remove seals to prevent damage during sweating.
For a FIP angle stop or other threaded connection, apply three to four wraps of PTFE tape to the male threads and start the valve by hand to prevent cross-threading. Tighten until aligned and sealed, then connect the supply line and test slowly.
After installation, turn the water back on slowly while watching every joint. Open the angle stop and fixture in stages rather than all at once. Use a dry towel or tissue to reveal small weeps around fittings. Operate the valve, let pressure stabilize, and inspect again for slow leaks.
Be aware of common mistakes that can lead to failures. Over-tightening compression nuts can deform ferrules and cause leaks. Do not reuse damaged ferrules; when necessary, cut back the pipe and install a new ferrule. Do not solder near heat-sensitive seals unless they are protected or removed. Do not twist while inserting push-fit fittings, and always follow manufacturer depth marks.
Common trouble points include a frozen or leaky stop that forces a main shutoff, misapplied PTFE tape that causes threaded leaks, and tightening outlet nuts without a backup wrench. Keep spare parts nearby and follow torque guidance for each valve type to reduce callbacks.
Common Problems And Quick Repairs For Angle Stops
Small leaks, stuck handles, and stiff valves are common angle stop problems for homeowners. A quick inspection can show whether the valve needs a minor repair or complete replacement for dependable service.
Leaks Around The Handle
Stem seepage in older multi-turn valves often comes from a loose packing nut. Tightening the nut about 1/8 turn with an adjustable wrench can often solve the issue. If water still seeps, the internal washer, O-ring, or packing may be worn and the valve may need replacement.
Frozen Or Stuck Valves
Stuck angle stops often result from Mineral Buildup or rust. Applying a penetrating oil such as WD-40 and allowing it to sit for about ten minutes can sometimes loosen the valve. A gentle back-and-forth motion may help break the handle free. If it remains stuck or the handle is brittle, replace the stop to avoid a flood.
Weeping Compression Joints
A continuing compression-joint leak often points to a crooked ferrule, damaged pipe end, or poor seating. To fix it, loosen the nut, reseat the ferrule, and clean the pipe with emery cloth. If the ferrule is worn, cut back the pipe, install a new ferrule, and tighten carefully to prevent more leaks.
When Replacement Makes Sense
Homes with frequent leaks, frozen handles, visible corrosion, or valves over ten years old should consider modern angle stops. A Quarter-Turn Upgrade to a ball-type stop improves shutoff speed, resists Mineral Buildup, and increases emergency reliability.
Quick Checklist
- For stem drips, tighten the packing nut slightly and recheck.
- Use Penetrating Oil and gentle motion for stuck valves.
- For compression leaks, reseat the ferrule or cut back the pipe and install a new ferrule.
- Upgrade to quarter-turn stops when valves freeze or leak repeatedly.
Regularly exercising angle stops and checking for corrosion helps identify issues early. Fixing leaks, stuck valves, and weeping joints promptly helps prevent bigger repairs and supports Angle Stop Reliability.
Summary
This Plumbing Angle Stops Guide shows why small fixture shutoff valves are so important. They let homeowners shut off one fixture without disrupting water to the whole house. Choosing the right material, operation style, and connection type makes repairs easier. It also reduces the risk of water damage during upgrades.
For best performance, the industry often recommends lead-free, quarter-turn brass 1/2 x 3/8 stops. Integrated arrestors are also useful where water hammer is a concern. Homeowners should periodically test valves and replace Plumbing Angle Stops that leak, stick, or corrode. Depending on valve type and job difficulty, parts may range from $6 to $60, while professional installation may cost $75 to $200.
When installation feels uncertain, hiring a licensed plumber is the safer option. A plumber can ensure code compliance and provide warranty-backed work. That approach helps protect fixtures, reduce risk, and make future maintenance easier. It also follows best practices in Angle Stops Plumbing for modern residential installations.
